OO Design

Identify when objects in a problem definition are related by inheritance; when can you say "every A is B"?

• B could be the base class (superclass, parent)
• A would be the derived class (subclass, child)
• class A inherits from class B.

Identify when objects are related by composition; when can you say "every A has a B"?

• A would be the containing class
• B would be the contained class
• class A is partially composed from class B.

Aggregation is composition, but for collections of objects of another class type.

UML

Unified Modeling Language helps us visualize relationships.

• class names go in rectangles
• directed arrow goes from derived class (A) to base class (B)
  • class A -- IS-A --> class B
• diamond at containing class (A) goes to the contained class (B).
  • class A <>-- HAS-A -- class B

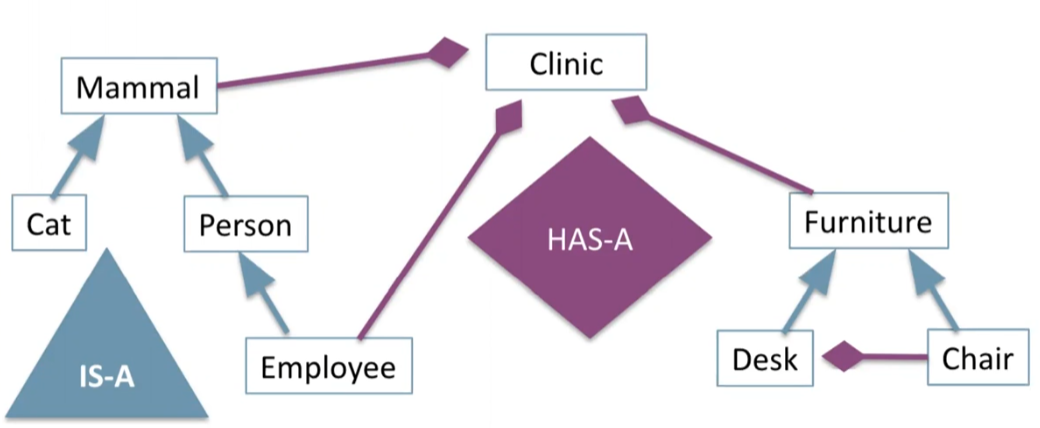

UML Design of a vet clinic.

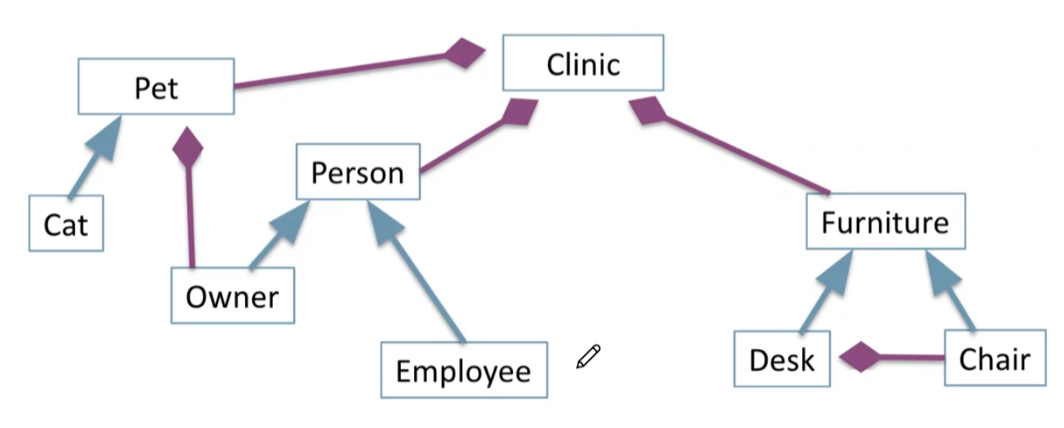

Alternative UML design.

A more complex UML diagram would have class name, data members, and method functions in each box.

UML is much more than just class diagrams.
